Broadcast Management Group’s system integration team recently completed the design and build out of a custom 4K flight pack, which was designed for the specific purpose of supporting our live production projects. We decided to put the new equipment to the test during a recent multi-camera production with truTV and the Impractical Jokers at San Diego Comic-Con.

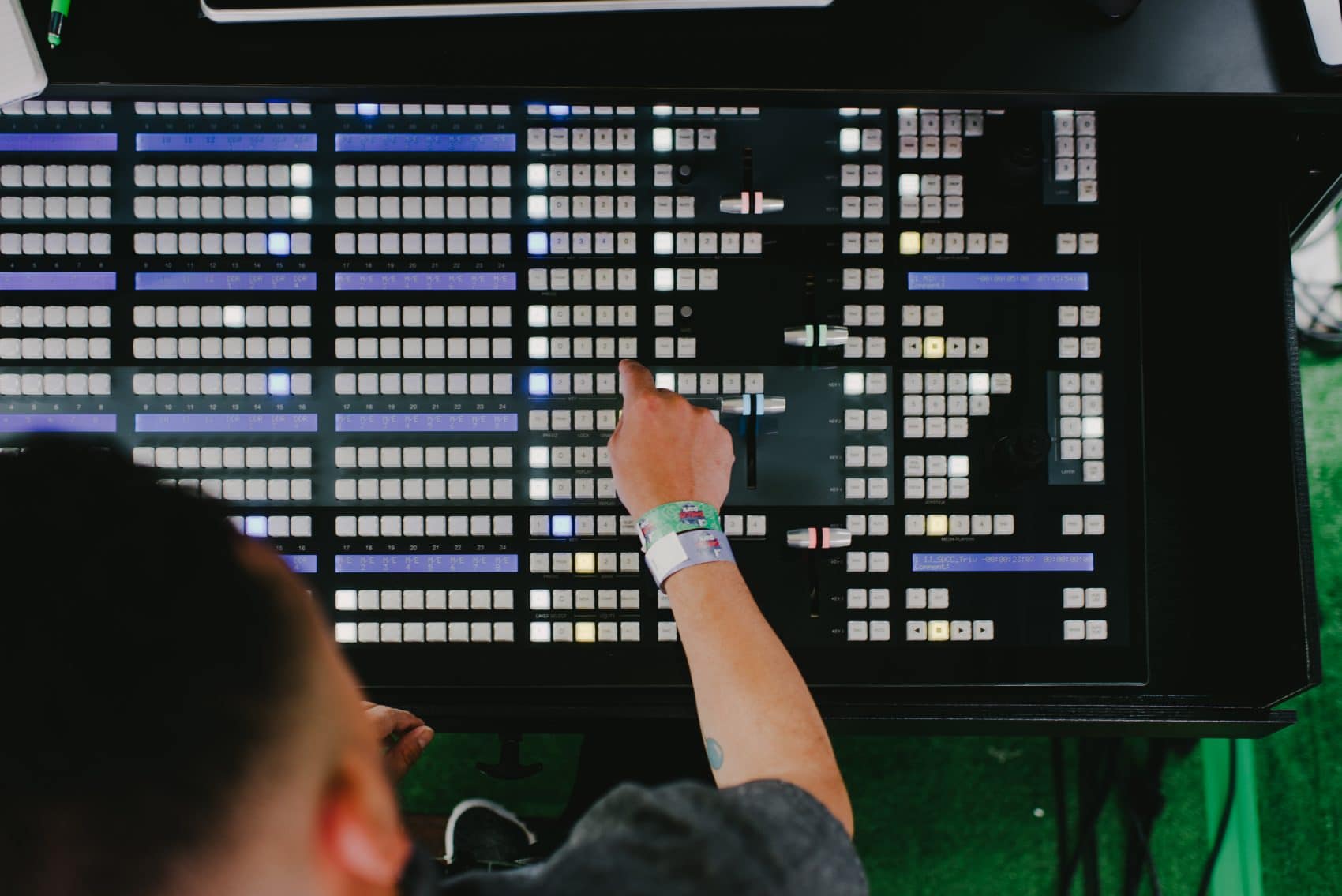

Our latest 4K flight pack features the Newtek Mix Engine switcher, which can accommodate 44 video inputs with resolutions up to 4K. The switcher also features 8 M/E buses with video re-entry and 4 key layers per M/E bus, plus 4 DDRs, 1 sound media player, 10 animation buffers, 5 graphic buffers, 4 multi-view outputs, 2 independent video mix outputs, 2 streaming outputs, and supports up to 44 PTZ robotic cameras. Also integrated into the flight pack is a 40×40 12G router, 24-port network hub, audio and video I/O panels, 2 standards converters, 2 Hyperdeck recorders, and a built-in UPS. The flight pack itself comes in a custom-built case which easily rolls into venues and sets up within hours.
BMG’s new 4K flight pack was the perfect application for truTV’s live stream. Their “Impractically Speaking” Q&A featured 4 cameras, video playback, graphics, ISO and program records, and live streaming to 2 destinations. In addition to our live program, we needed to distribute a sub-switch to the in-house Jumbotron, which we were able to accommodate using one of the two independent mix outputs. Our control room environment was located just a few hundred feet from the main stage, allowing us to get our switcher and cable runs completed in just a few short hours.
If you’re looking for your own custom 4k flight pack, this is just one of the many services our system integration team provides and we’d be happy to help. Contact us today to discuss.
